YH02-A 110V 8A / 220V 15A 4PIN 5PIN Electromagnetic Switch Starter Push Button Large Panel for Machine Tool Equipment Waterproof
Product details
| Management number | 211101040 | Release Date | 2026/04/04 | List Price | $14.49 | Model Number | 211101040 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

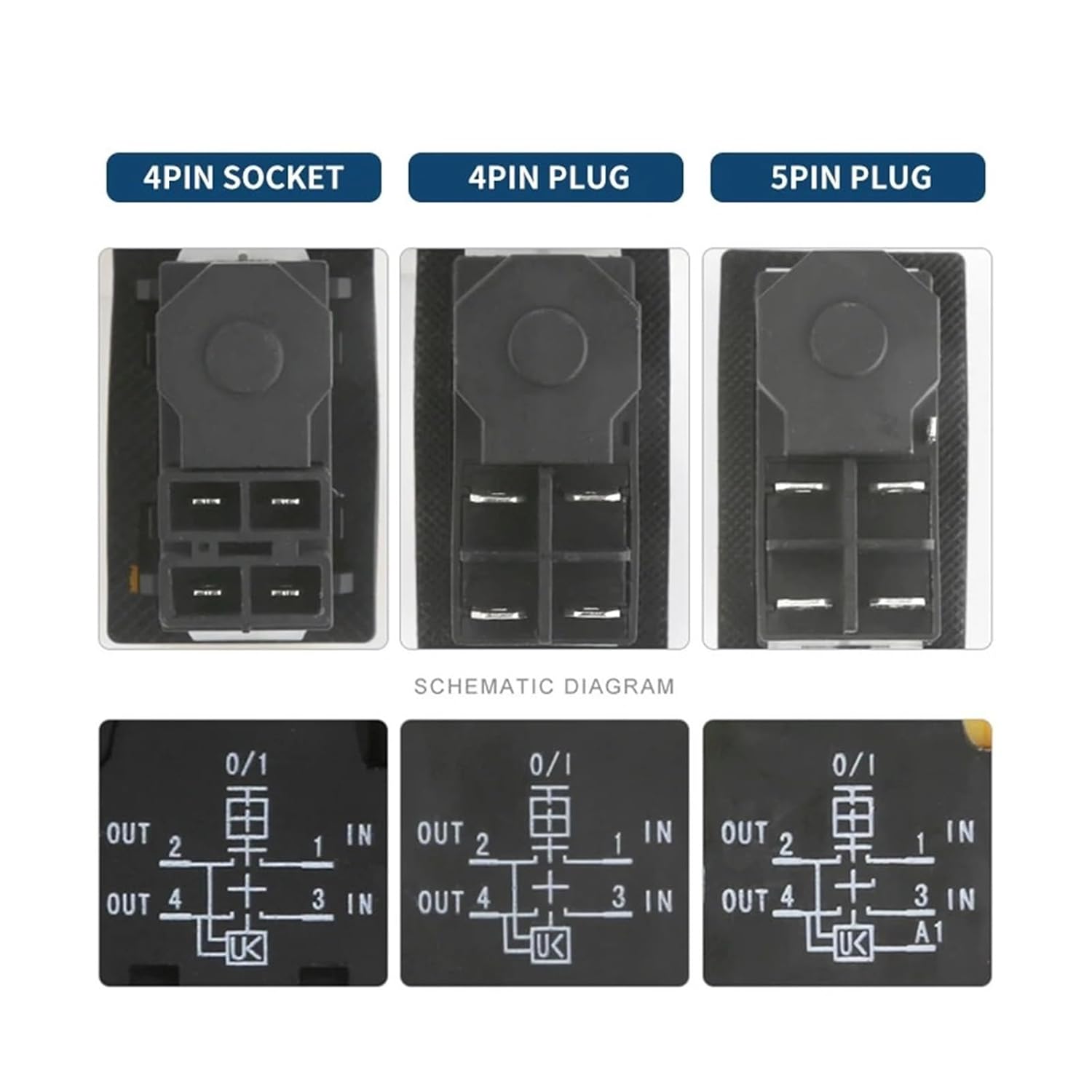

This product can replace magnetic switches of models such as KJD17 and KLD28Product name: Electromagnetic Push button switchModel: YH02-A / YH01ARated Voltage:AC250VRated Current: (AC-3)Coil Voltage: 220-240VContact capacity: 110V 8A / 220V 15ARated: 50/60HzPin Number: 4Pin/5PinDegree Protection: IP55Number of operating Cycles: 5E4Ambient temperature: T85/55This switch have the following function that derived from power-off and under voltage protection:1. Double Pole cut off2. Brake function with one pole cut off3. These two versions can be combined with overload protection switch to achieve under voltage and overload protectionWidely used in machine tools, large-scale power tools, garden machinery above, belonging to the safety switch, the device will not turn on after power off unexpectedly, need to press the green start button will turn on.Current : 15AMaterial : PlasticSwitch Type : Push Button SwitchModel Number : YH-02A KJD17 KJD17A KLD28 KLD28AItem Type : SWITCHESIs Smart Device : NoOrigin : Mainland ChinaYH02 Contact capacity : 110VAC 8A,250VAC 15AYH01 Contact capacity : 110VAC 16A,250VAC 8A
- LGYMSZSS YH02-A 110V 8A / 220V 15A 4PIN 5PIN Electromagnetic Switch Starter Push Button Large Panel for Machine Tool Equipment Waterproof

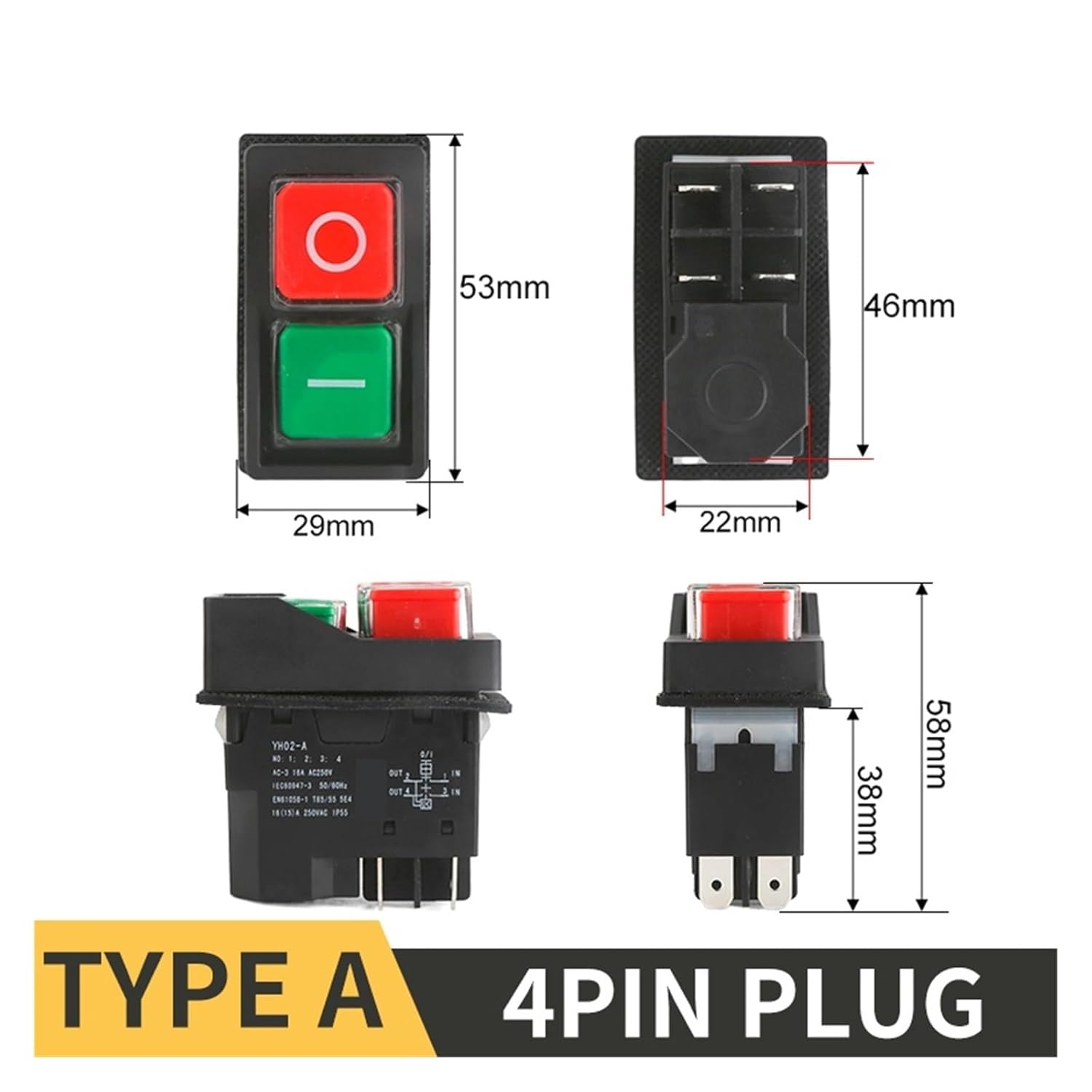

| Color | Type A 4PIN Plug |
|---|---|
| Model | LGYMSZSS |
| Terminal | Blade |
| Brand Name | LGYMSZSS |
| Unit Count | 1.0 Count |
| Switch Type | Bipolar Transistor |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | LGYMSZSS |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 1 Amps |
| Operation Mode | OFF-NONE-ON |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 1 Kilovolts |
| Specification Met | UL |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP00 |
