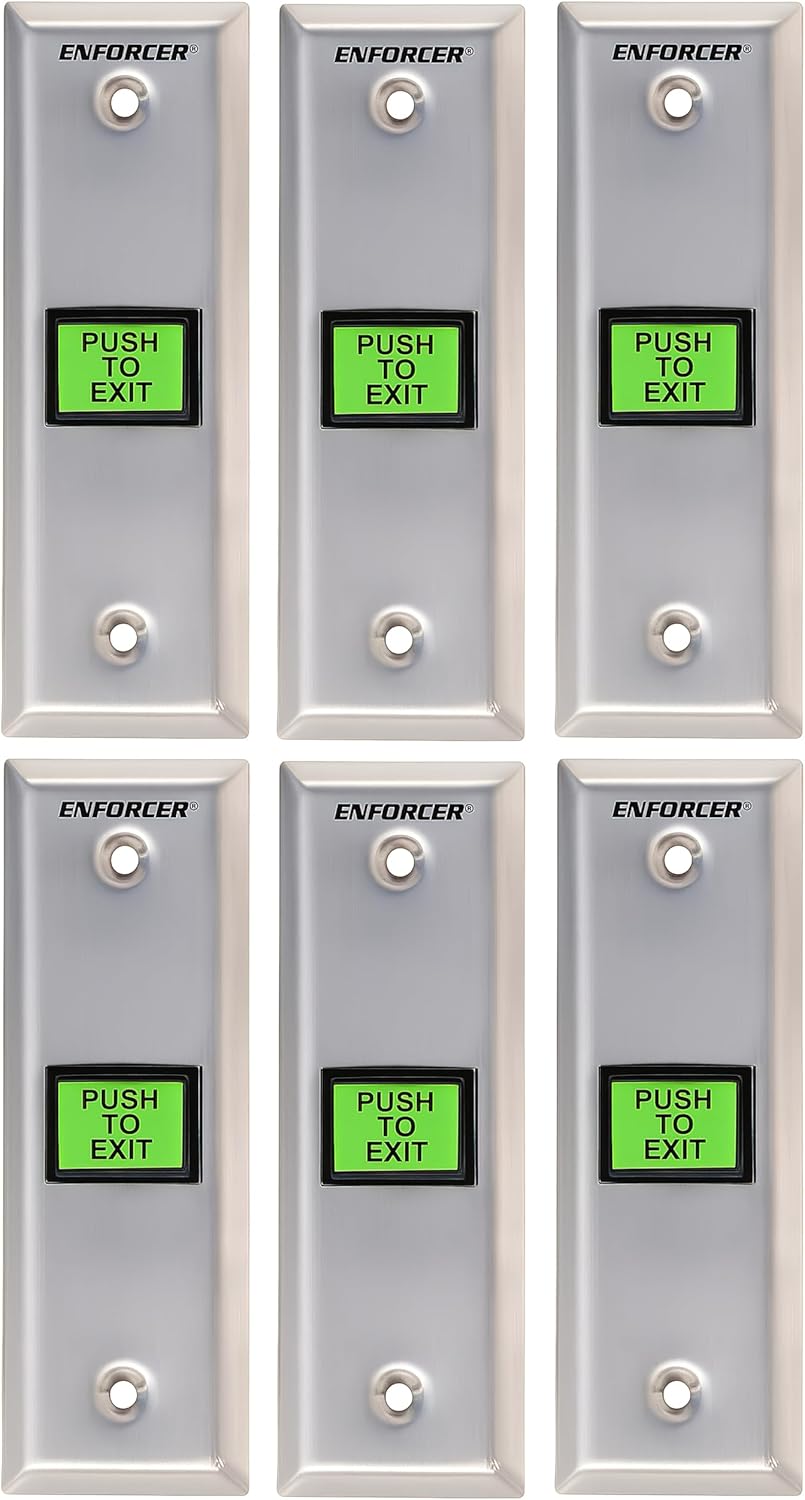

Seco-Larm Enforcer Slimline Push-to-Exit Plate, Illuminated with Timer (SD-7103GC-PTQ)

The Seco-Larm Enforcer Slimline Push-to-Exit Plate, Illuminated with Built-In Timer Plate is illuminated with a "PUSH TO EXIT" caption that can be easily changed to "PRESIONE PARA SALIR" in the field. It includes a built-in timer that allows you to extend activation time up to 180 seconds. The slimline plate features a narrow design for easy installation on tight wall panels.Built-in timer, 1 to 180 seconds with buzzer output for audio statusBoth English and Spanish messages includedLong-life green LED momentary buttonRubber-sealed switch to prevent liquid penetrationPlastic terminal protector for dividing individual terminalsContents"PUSH TO EXIT" and "PRESIONE PARA SALIR" message plates(6) Wire leads with easy-to-attach spade lugs for fast installationStainless-steel slimline plate680 ohm resistorTechnical DetailsManufacturer Part #: SD-7103GC-PTQUPC: 676544013198Color: GreenWire Leads: 12-inch, AWG 18, color-codedMechanical Lifetime: 2,000,000 operationsUnit Dimensions: 4-1/2 x 2-3/4 x 1-3/4 inches (114 x 70 x 45mm)Button: N.O./N.C. contacts rated, DPST, 3 Amps at 24VDCButton Dimensions: 15/16 x 11/16 inchesLED: 12/24 VAC/VDC, approx. 35,000-hour lifeResistor: 680 ohms, 0.5WPlug-In Terminals: 6Approved: CE and ULWarranty: 1 Year

• Built-in timer, 1 to 180 seconds with buzzer output for audio status
• Both English and Spanish messages included: "PUSH TO EXIT," "PRESIONE PARA SALIR"
• Long-life green LED momentary button
• Rubber-sealed switch to prevent liquid penetration
• Installation hardware included
