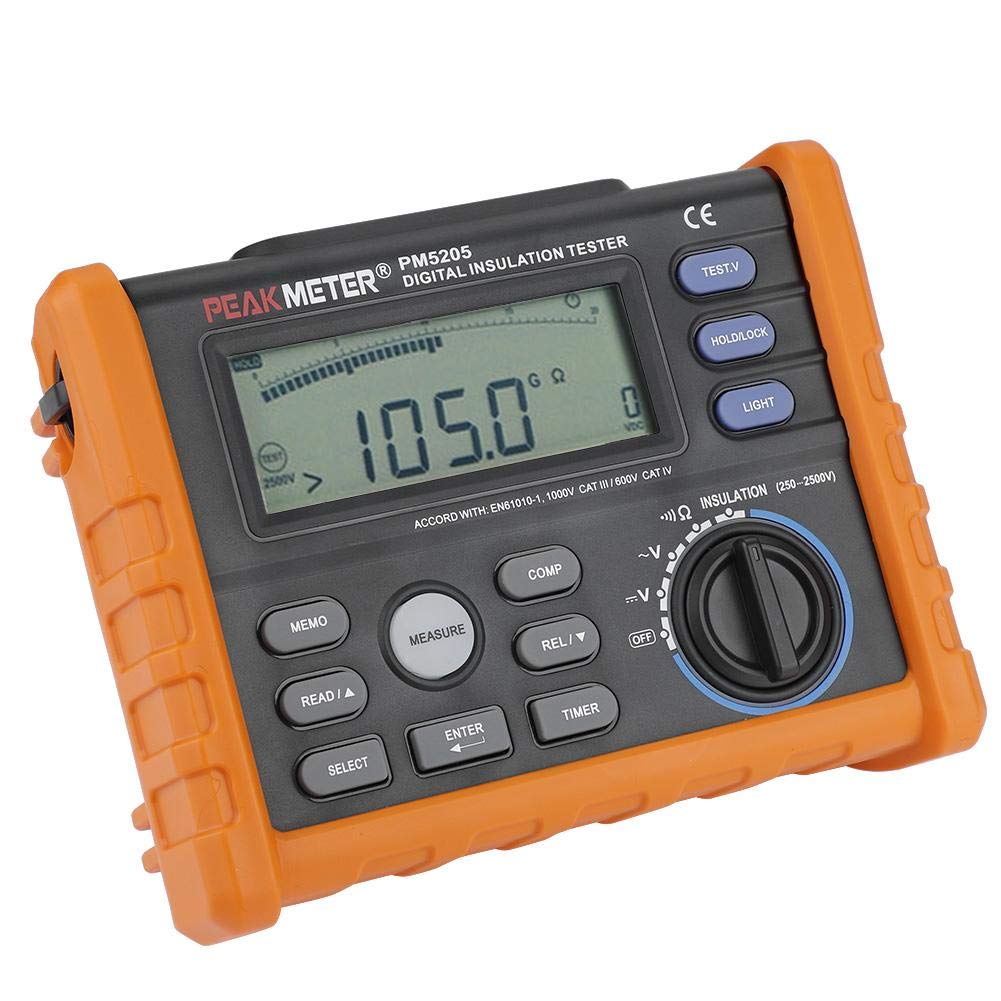

Earth Tester PM5205 Digital Megohmmeter Digital Insulation Tester Analog Display 0.01MΩ-100GΩ 2500V AC DC Voltage Meter Automatic Calculation

Specifications: Technical Parameter Insulation Test Output Voltage:250V (0 %~+20%),Measuring Range:0.01MΩ~250MΩ ± (3%+5) Output Voltage:500V (0%~+20%),Measuring Range:0.01MΩ~500MΩ ± (3%+5) Output Voltage:1000V (0%~+20%),Measuring Range:0.01MΩ~1000MΩ ± (3%+5) Output Voltage:2500V (0%~+20%),Measuring Range:0.1MΩ~2.00GΩ ± (3%+5),2.00GΩ~20.00GΩ ± (5%+0.2GΩ),20.0GΩ~100.0GΩ ± (10%+2GΩ) Output Voltage:1000V (0%~+20%) ,Measuring Range:5.00GΩ~10.00GΩ±(10%+0.2GΩ) Short Circuit Current:3mA Multimeter Functions DC Voltage Test :Measuring Range:0.1~1000V±0.5% AC Voltage Test:Measuring Range:0.1~750V±1% Continuity Test:Measuring Range:0.01Ω~200Ω±0.5% General Parameter Brand :PEAKMETER Model:PM5205 Color:Orange Power Supply:6 x 1.5V LR4 Batteries (NOT included) Item Size:18*14*6.5cm / 7.1*5.5*2.6in Weight Approx.:2285g Safety Rating:CE, CAT.III, 1000V, ETL Package Included: 1 x PM5203 Digital Insulation Tester 2 x Clips 2 x Test s 1 x Hand Bag

• 【Measurement Mode】Gear selection,you can choose the measurement range you want,so that you can use in many situations.Powered by 6 AA batteries (NOT included).This Earth tester also has Maximum/minimum/average measurement function.It Can also be used to AC/DC voltage measurement and continuity test. Automatic calculation of PI (polarization index) and DAR (dielectric absorption ratio).This Earth Test the insulation with 250V-2500V voltage.
• 【Excellent Design】This grounding meter has double insulation for safer measurement.The multi-slot card-type protective sleeve is closely fitted with the meter, so that the meter is non-slip and anti-fall.The meter is capable of storing up to 28 groups of measurement data.Lock function: lock data during insulation test.Timing function: timing function during insulation test.Automatic discharge: the meter will automatically discharge when the load is capacitance.
• 【Easy Reading】This Digital megohmmeter has Large digital LCD and backlight applied to the meter facilitate users to read the information on LCD.Large-screen high-definition backlight: Press the backlight button to turn the backlight on or off.And this Earth tester Display: has analog bar and digital display function.Under voltage indication.Press Hold button to freeze the displayed value. Press again to release the display.
• 【 Material】This PM 5205 Earth tester is a professional instrument in detecting ground of the electrical equipment. Upgraded from the traditional ground meter with its circuit, structure and techniques. Now present as fashionable, and easy operational.Thanks to robust housing, compact inner structure, This Meter offers the features of drop-resistance and super long lifespan.
• 【Widely Used】Resistance Meter Tester is small and easy to carry. Applicable to the shop, postal, railway, , chemical, communications, mining and other departments to measure the grounding of various devices,such as Suitable for high voltage tower measurement, grid grounding measurement, rod measurement.Check the insulation of high voltage electrical equipment such as motor, transformer, cable, etc.
