40Amp DC Power Splitter Distribution Module, 5 Power Pole Ports and 6 USB Ports Output
$98.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by repairthephoto.net
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$98.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by repairthephoto.net
Free 30-day returns Details
Product details
| Management number | 209126770 | Release Date | 2026/03/29 | List Price | $39.20 | Model Number | 209126770 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

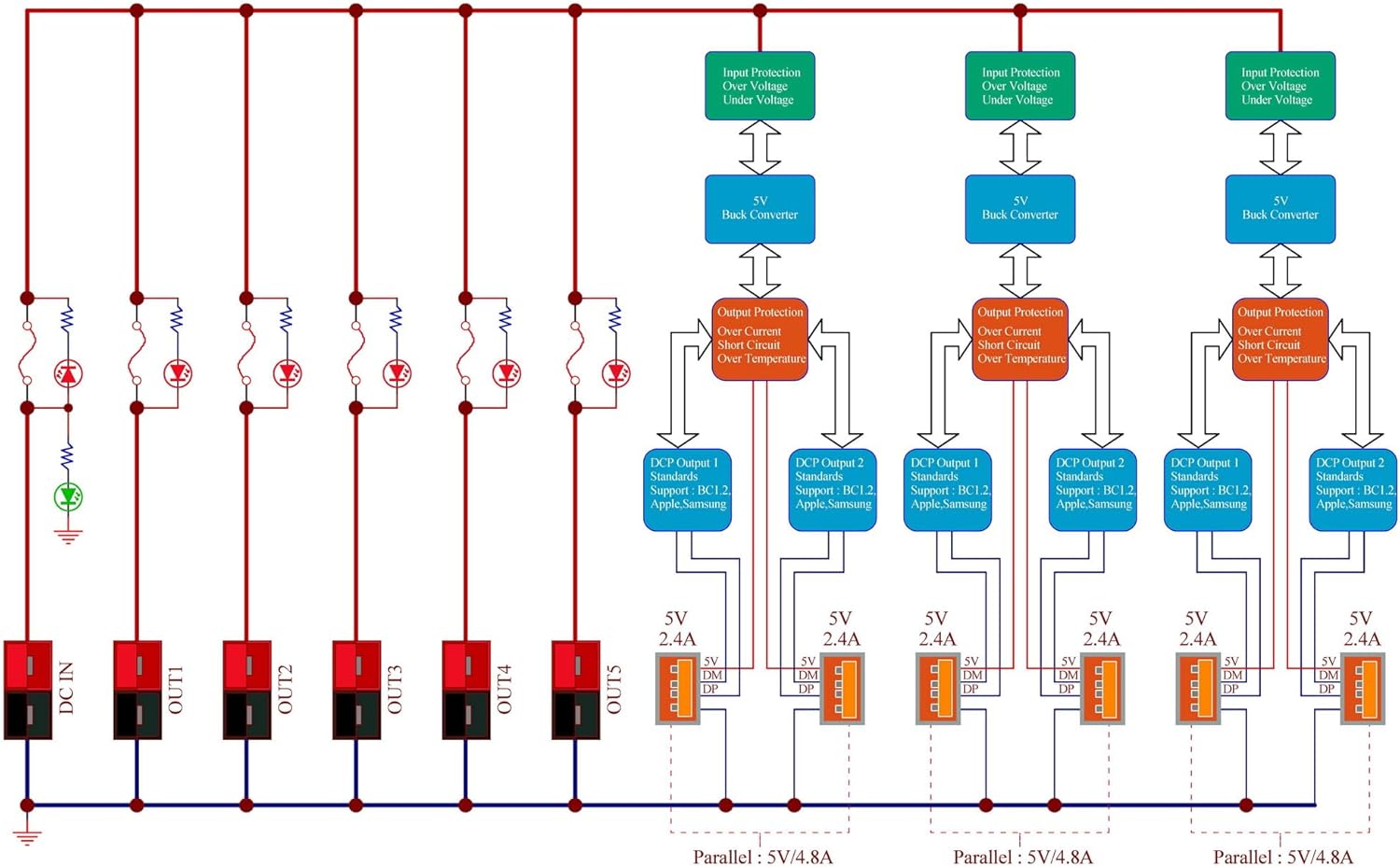

- Input: Operating voltage 8.5 to 32VDC. Maximum input current 40 Amp, fuse 40 Amp. No-load quiescent current: less than 8mA(at 13.8V).
- Power pole output ports: 5 output ports, 1*30Amp 1*20Amp 1*10Amp 1*5Amp 1*3Amp, you can replace these fuses, but the maximum output current of each port is 30Amp, total maximum output current 40Amp.
- USB output ports: 6 USB output ports, output voltage 5VDC, output maximum current 2.4Amp for each port. Support dual ports parallel output 4.8Amp. Support USB DCP BC1.2 protocol, support Apple and Samsung protocol. The conversion efficiency of the internal circuit is greater than 90%.
- With power indicator LED, with fault indicator LED for each fuse. High-quality fuse holders, you can very easy to replace fuse from the outside, ATC/ATO auto fuses are easy to get and are available in 10 values from 1 to 40 Amp.

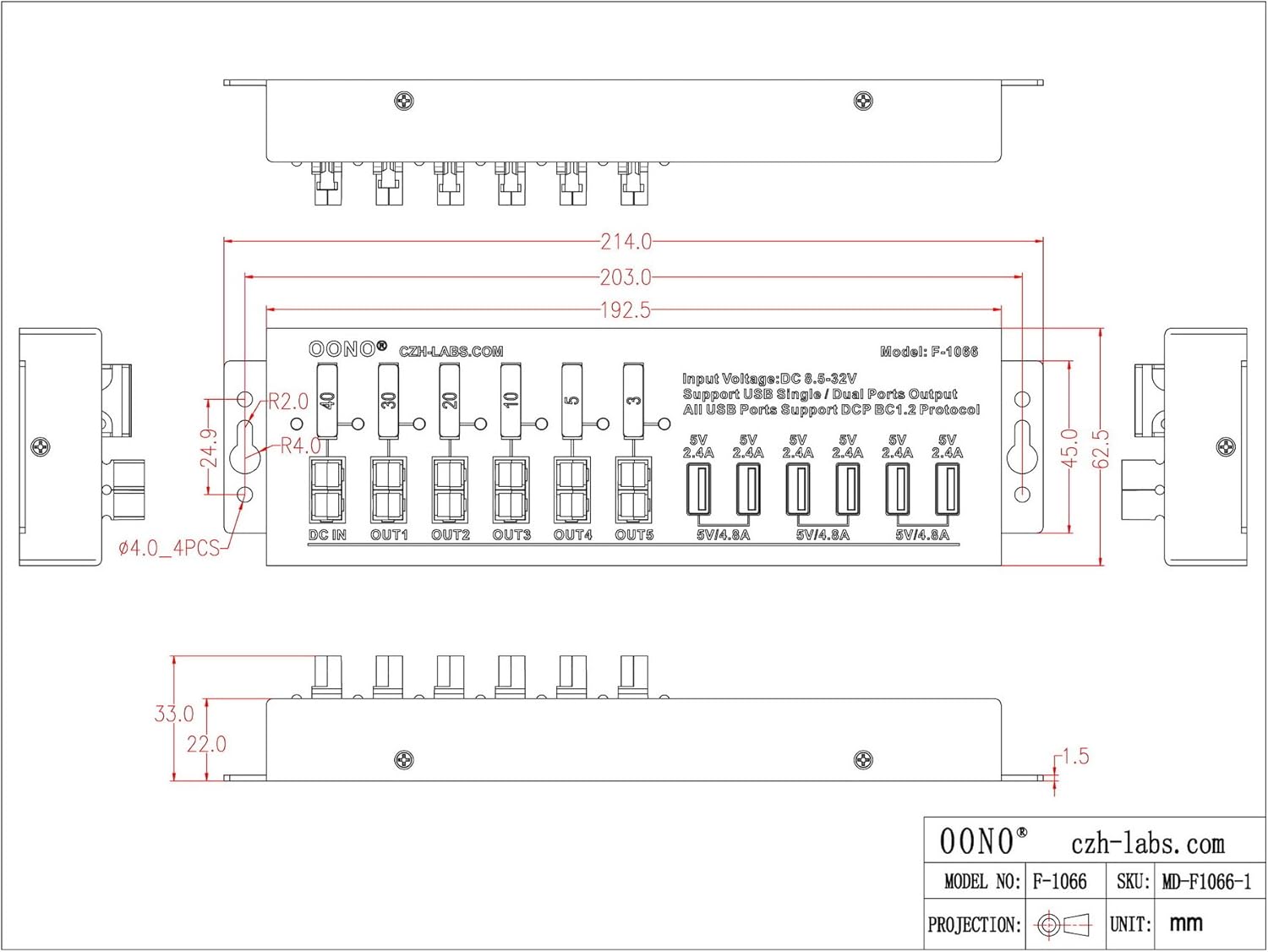

- Enclosure: High quality aluminum enclosure, thickness 1.5mm / 0.06". Support screw mount, wall mount, of course can also be placed on the desktop. If you purchase together our CASE-015 DIN adapter bracket, it can also be support 35mm, 32mm or 15mm DIN rail mounting.
| Brand | OONO |
|---|---|
| Shape | Rectangle |
| Voltage | 32 Volts |
| Amperage | 40 Amps |
| Plug Type | Type B |
| Manufacturer | CZH-LABS |
| Model Number | F-1066 |
| Maximum Current | 40 Amps |
| Mfr Part Number | F-1066 |
| Number of Ports | 5 |
| Power Plug Type | Type B - 3 pin (North American) |
| Total Usb Ports | 6 |
| Number of Outlets | 5 |
| Compatible Devices | Cellular Phones, Tablets |
| Enclosure Material | Aluminum |
| Item Dimensions L x W | 8.43"L x 2.46"W |
| Surge Protection Rating | 40 Amps |
| Recommended Uses For Product | Apartment, Office, Tabletop |
| Other Special Features of the Product | Usb Slot |
