1PCS 2/4/6/8/12ch Wires 2A 10A Hollow Shaft Slip Ring Hole 5-38.1mm D22-99mm Conductive Rotary Joint Electric Slipring Connector(Hole 38.1mm 2CH 10A)

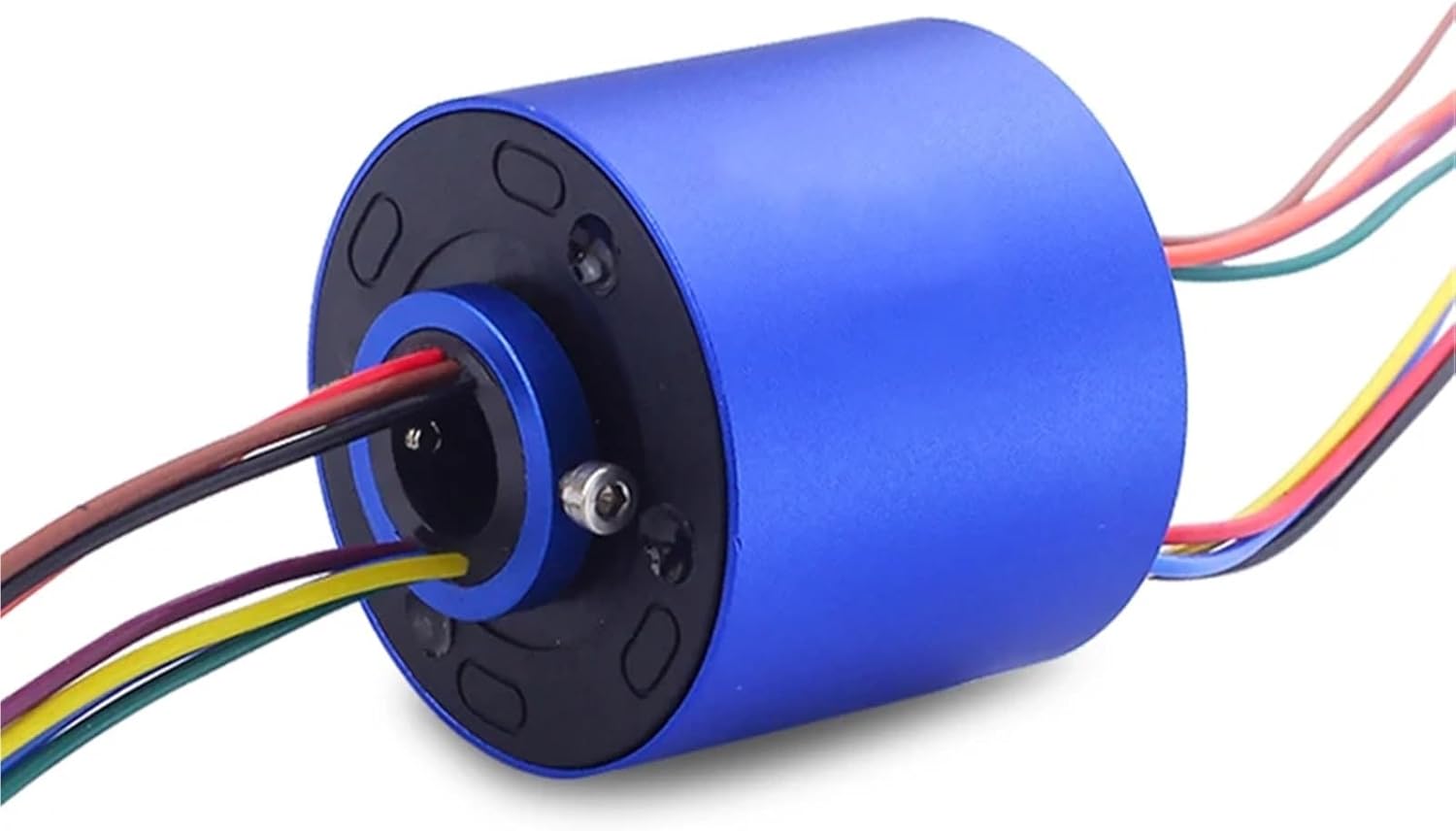

Slip Ring1PCS 2/4/6/8/12ch Wires 2A 10A Hollow Shaft Slip Ring Hole 5/7/12.7/25.4mm Dia 22/54/85mm Conductive Rotary Joint Electric Slipring ConnectorPlease noted that:- aluminium alloy blue shell : for 12.7mm 25.4mm 38.1mm 50.2mm hole slipring- plastic black shell : 5mm 7mm hole slipringFor example:-Hole 5mm 2CH 2A, it means slip ring outer diameter is 22mm, hole diameter is 5mm, way: 2ch, current: 2A-Hole 12.7mm 2CH 10A, it means slip ring outer diameter is 54mm, hole diameter is 12.7mm, way: 2CH, current: 10A-Hole 25.4mm 6CH 10A, it means slip ring outer diameter is 85mm, hole diameter is 25.4mm, way: 6CH, current: 10A-Hole 38.1mm 12CH 10A, it means slip ring outer diameter is 93mm, hole diameter is 38.1mm, way: 12CH, current: 10A-Hole 50.2mm 12CH 10A, it means slip ring outer diameter is 113mm, hole diameter is 50.2mm, way: 12CH, current: 10ADescription for through hole diameter 5mm, outer diameter: 22mm<;=5mm) and an outer diameter of 22mm. It is an integral precision conductive slip ring made of plastic and aluminum alloy. Support signal (2A), 15A voltage 220VAC/VDC.- Compared with similar products, it has high rotation accuracy, more stable performance and longer life. The contact material adopts precious metal + super-hard gold plating treatment, with small , stable operation, long life, small resistance fluctuation, small contact resistance, and excellent transmission performance.- Typical applications include automation equipment, work turntables, camera PTZ, robots, etc.Description for through hole diameter 7mm, outer diameter 22mm- Speed: 250rpm- Channel number: 2CH/4CH/6CH- Rated voltage: 220V- Rated current: 2A/CH- Operating temperature: -40 ~ + 80 - Contact material: Precious metals- Wire Size: AWG28- Protection class: IP54- Insulation resistance: 500M/500VDC- Shell material: Engineering plastics- Shockproof level: MIL-SID-810E- Bearing: High precision ball bearing- Working life:5 million rpm(depending on the working environment and speed)Description for through hole diameter 12.7mm, outer diameter 54mm-RPM: 200RPM-Channel: 2ch/4ch/6ch/8ch/12ch-Rated voltage: 220VAC/DC-Current Rating: 10A/Channel-Working temperature: -20 - 60 degree-Contact Material: golden/golden-Length of cable: 250mm for each side-Compressive strength:>=500V@50Hz-Insulation resistance:1000mOhm/500VDC-Protection class: IP54-Working life:>=5000,000 revolutions(up to the environment and speed)-Can be used for Automation equipment, working turntable,Camera Gimbal PTZ,robots,etcDescription for through hole diameter 25.4mm, outer diameter 85mm-RPM: 200RPM-Channel: 4CH/6CH/12CH-Rated voltage: 220VAC/DC-Rated current: 10A/Channel-Working temperature: -20 - 60-Contact material: golden/golden-Compressive strength:>=500V@50Hz-Insulation resistance: 500mOhm/500VDC-Protection class: IP54-Working life:>=5000,000 revolutions(up to the environment and speed)-Can be used for Automation equipment, working turntable,Camera Gimbal PTZ,robots,etcDescription for through hole diameter 38.1mm/50.2mm, outer diameter 93mm/113mm- RPM: 250RPM- Channel: 12CH- Rated voltage: 380VAC/DC- Current Rating: 10A/Channel- Working temperature: -40 to -80 degree- Shell Material: Aluminum alloy- Length of cable: 250mm- Insulation resistance: 500M/500VDC- Protection class: IP54- Working life:>=5000,000 revolutions(up to the environment and speed)Package include:1pcs x slip ring==========Hign-concerned Chemical : NoneIs Electric : No BatteryIs it battery/power supply : NIs it charger/adapter : NIs Batteries Included : NoSize : Hole 5mm-25.4mmTechnical parameters : value 2Model Number : 2/4/6/8/12ch slipringFor Vehicle Type : AirplanesTool Supplies : Assembled classFour-wheel Drive Attributes : AssemblageRemote Control Peripherals/Devices : Conductive Rotary JointUpgrade Parts/Accessories : SlipringRC Parts & Accs : Slip RingMaterial : Composite MaterialUse : Vehicles & Remote Control Toys
